Choosing The Right Solar Panel Clamp for Different Roof Types

As the world shifts towards more sustainable energy sources, solar power is becoming a popular choice for homeowners and businesses alike. Installing solar panels can provide significant energy savings, reduce electricity costs, and contribute to a greener environment. However, to ensure the long-term efficiency and safety of a solar panel system, choosing the right components is crucial. One of the most important components in any solar installation is the solar panel clamp.

Solar panel clamps play an essential role in securely mounting the panels to the roof, providing the necessary stability and durability to withstand harsh weather conditions, while also ensuring optimal performance. But with various roof types—each with its own unique characteristics—it’s vital to understand which clamp is best suited for your installation. In this article, we will explore the importance of solar panel clamps and how to choose the right one for different roof types, including tile, metal, flat, and shingle roofs.

The Importance of Solar Panel Clamps

Before diving into specific roof types, it's important to understand the function of solar panel clamps. These components secure the solar panels to the mounting system, which is attached to the roof. Clamps prevent the panels from shifting or becoming loose during strong winds, heavy rains, or even snow accumulation. In addition to providing physical security, solar panel clamps also ensure that the panels are positioned at the optimal angle for maximum sun exposure, allowing for higher energy generation.

Clamps also help with the aesthetic appearance of the system, providing a clean, minimalistic look once the panels are installed. Properly installed clamps also contribute to the overall lifespan of the solar panel system by ensuring that the panels stay securely attached for many years.

There are different types of solar panel clamps, each designed to suit specific mounting systems and roof configurations. Let's take a look at the various roof types and how to choose the right clamp for each.

1. Solar Panel Clamps for Tile Roofs

Tile roofs are commonly found in residential buildings, especially in regions with warmer climates. These roofs are known for their aesthetic appeal and durability. However, tile roofs can present challenges when it comes to installing solar panels. Unlike flat or shingle roofs, tile roofs have an uneven surface, which requires special mounting equipment to ensure the panels are securely attached.

Types of Tile Roofs:

• Clay Tiles: These are often seen in Mediterranean-style homes. They are heavy and have a curved shape.

• Concrete Tiles: Similar to clay tiles, but heavier and thicker, with a more uniform shape.

• Slate Tiles: These are more durable and thinner but still have a rough texture.

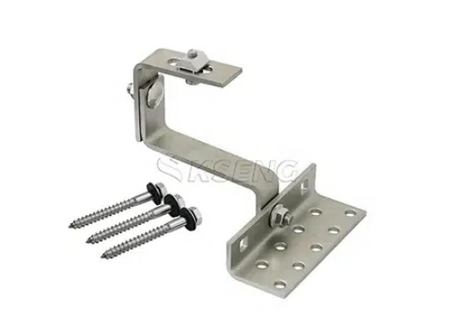

Choosing the Right Clamp for Tile Roofs: For tile roofs, the best choice is typically roof hooks and rail systems, combined with specific clamps designed for this purpose. The roof hook is installed under the tiles to secure the rails that hold the panels. Once the rails are in place, solar panel clamps are used to attach the solar panels to the rails.

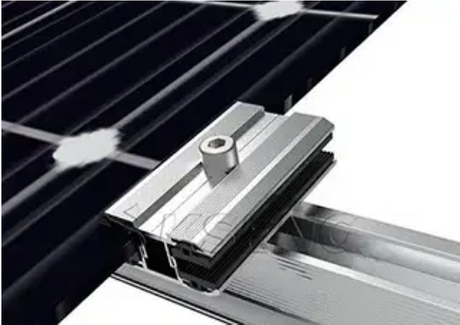

The clamps used for tile roofs are usually mid clamps and end clamps. Mid clamps are placed between panels to secure them along the rail, while end clamps are used at the edges of the array. These clamps are designed to accommodate the thickness of the tiles and ensure a secure connection. Additionally, some clamps are specifically designed with an adjustable height feature to compensate for the uneven surface of the tiles.

Considerations:

• Waterproofing: Ensure that the clamp is designed to prevent any water from leaking under the tiles.

• Compatibility: Make sure the clamps are compatible with the rail system used for tile roofs.

• Durability: Choose clamps made of corrosion-resistant materials like stainless steel or aluminum, as tile roofs are often exposed to harsh weather conditions.

2. Solar Panel Clamps for Metal Roofs

Metal roofs are popular in both residential and commercial settings due to their durability, longevity, and sleek appearance. Metal roofs are usually made of steel, aluminum, or copper, and they offer an excellent base for solar panel installations because they are smooth, sturdy, and resistant to the elements.

Types of Metal Roofs:

• Standing Seam Metal Roofs: These are characterized by vertical panels with raised seams that interlock together.

• Corrugated Metal Roofs: These have a wavy design, typically used in agricultural or industrial buildings.

• Ribbed Metal Roofs: These roofs have horizontal ribs or grooves and are often used in commercial structures.

Choosing the Right Clamp for Metal Roofs: For metal roofs, standing seam clamps are a popular choice. These clamps are designed to attach directly to the seams of the metal roof without requiring any drilling or penetration of the roof material, which is ideal for preventing leaks and maintaining the roof’s integrity. Standing seam clamps grip the raised seams of the roof, providing a secure foundation for the solar rails and panels.

For corrugated or ribbed metal roofs, specialized metal roof clamps are used. These clamps are designed to fit the profile of the metal roofing and secure the solar system to the roof structure without causing damage.

Considerations:

• No Penetration: Choose clamps that do not require drilling to protect the integrity of the roof and prevent potential leaks.

• Corrosion Resistance: Ensure that the clamps are made of corrosion-resistant materials, especially if the roof is exposed to saltwater environments.

• Wind Resistance: Metal roofs often withstand high winds, so it’s crucial to choose clamps that are specifically designed to withstand strong forces.

3. Solar Panel Clamps for Flat Roofs

Flat roofs are another common roofing style, especially in commercial buildings and urban settings. While flat roofs provide ample space for solar panel installations, they also require a unique mounting system to ensure the panels are angled appropriately for maximum sun exposure.

Choosing the Right Clamp for Flat Roofs: For flat roofs, the primary challenge is creating the correct tilt angle for the solar panels. Solar panel systems for flat roofs often use ballasted mounting systems, which rely on the weight of the system to keep the panels in place. These systems typically do not penetrate the roof and are ideal for buildings that cannot afford to have holes drilled into the roofing.

Ballasted systems are often paired with mid clamps and end clamps to secure the solar panels to the rails. The clamps attach to the rails that are used to hold the solar panels in place. The advantage of using clamps on ballasted systems is that they ensure the panels are securely attached and will not shift during high winds or other environmental stressors.

Considerations:

• Roof Strength: Ensure that the roof can support the weight of the ballasted system. Some flat roofs may require additional reinforcement.

• Wind Load: Flat roofs are more susceptible to high winds, so choose clamps that provide a strong connection to the ballasted system.

• Ease of Installation: Since flat roofs are usually on commercial buildings, the ease and speed of installation are crucial to minimizing downtime.

4. Solar Panel Clamps for Shingle Roofs

Shingle roofs are the most common type of roofing found in residential buildings, particularly in North America. Shingles are typically made of asphalt, wood, or fiberglass, and they provide a flat, smooth surface for mounting solar panels.

Choosing the Right Clamp for Shingle Roofs: For shingle roofs, mounting brackets are used to attach the rails to the roof structure. These brackets often include a flashing system to prevent water from leaking through the roof. Once the brackets are installed, mid clamps and end clamps are used to secure the solar panels to the mounting rails.

The clamp system for shingle roofs is straightforward, but the key consideration is to ensure that the mounting system is correctly integrated with the roof's structure to avoid leaks. Some systems may require roof penetrations, while others use rail-less mounting systems that attach directly to the shingles.

Considerations:

• Leak Prevention: Always use high-quality flashing to prevent leaks when installing clamps on shingle roofs.

• Compatibility: Ensure the clamp system is compatible with the specific type of shingles on your roof.

• Ease of Installation: Since shingle roofs are prevalent, ease of installation is crucial, especially for residential installations.

Conclusion

Choosing the right solar panel clamp for your roof type is crucial for ensuring the security, efficiency, and longevity of your solar panel system. Each roof type presents unique challenges, but with the proper clamp system, these challenges can be effectively overcome. Whether you have a tile roof, metal roof, flat roof, or shingle roof, understanding the requirements of your roof and selecting the appropriate mounting and clamping solutions will help you achieve optimal solar performance.

By investing in the right solar panel clamps, you not only ensure a secure installation but also extend the lifespan of your solar system, reduce maintenance costs, and improve energy efficiency. The right clamps will ensure that your system can withstand the elements, perform at its best, and contribute to a more sustainable energy future.
