KST-SPT Commercial Single Post Solar Tracking System Single Axis

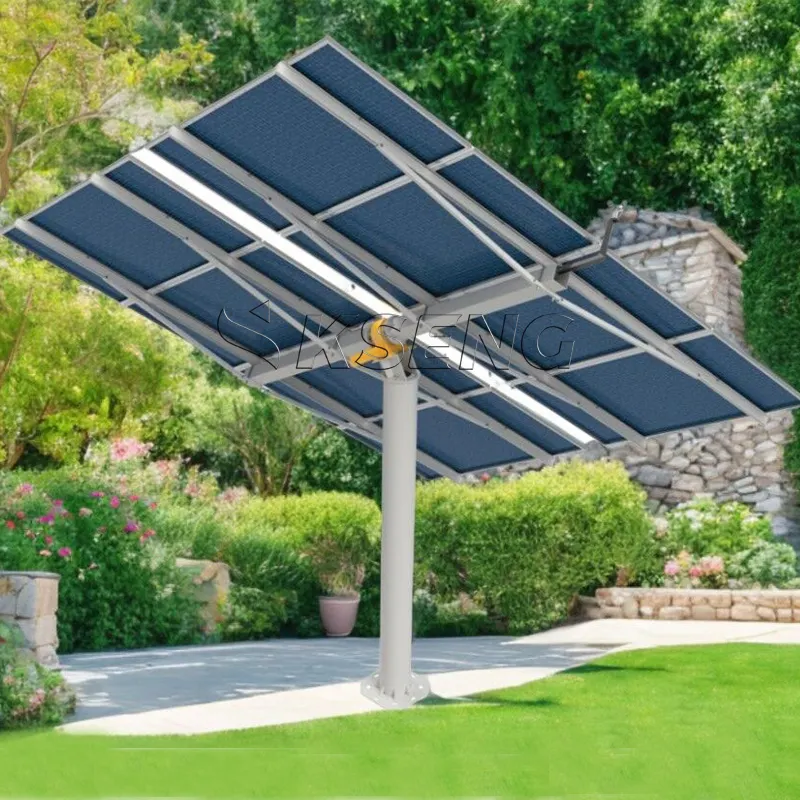

single post solar tracking system

A single post solar tracking system is a specialized mounting structure designed to track the movement of the sun and optimize solar panel positioning throughout the day.

Specifications:
- Design: Single post solar tracking systems feature a single vertical post that supports a horizontal tracking mechanism. The tracking mechanism allows the solar panels to follow the sun's path from east to west, maximizing solar exposure.

- Capacity: Single post solar tracking systems can accommodate various sizes and types of solar panels, depending on the project requirements.

Availability:

Quantity:



Inquire Add to Basket

Model:
41
Brand:
KSeng
Code:
KSeng-41

Product Description

Product Description

97457127-713e-468e-a8f0-499db8d10631

31657a4f-b486-4886-8157-b42033f98ef4

Specification

Tracking Structure Parameters

Tracking Technology	Single Post Solar Tracking System	Maximum capacity per set	4.8kWp ( Estimated with 600W PV-Modules )
PV-Modules quantity per set	8PCS	Tracking range	±45°( E-W )
Tracking accuracy	±0.5°	Tilt angle	25°- 40°( S-N )( according to project )
Protection of wind speed	≥18m/s ( Windy area )	Foundation form	Concrete foundation

Tracking Controller Parameters

Control system	MCU	Load design standard	GB, ASCE,BS EN,AS
Overheat prevention	Have	Night stow mode	Have
System fault self-diagnosis	Have	Overload prevention	Have
Motor Type	24V DC Motor	Drive System	Slew drive
Power Acquisition Mode	AC-powered or self-powered ( with 8 PV modules )	Solar tracking method	Astronomical algorithm + closed loop（AI Control）

Usage and Performance:

The primary purpose of a single post solar tracking system is to increase the efficiency and energy output of solar panel installations. By continuously adjusting the angle and orientation of the solar panels, the system ensures that they receive maximum sunlight, resulting in higher energy generation. This makes single post tracking systems ideal for both residential and commercial solar power applications.

Functionality:

The primary function of a single post solar tracking system is to maximize the energy generation of solar panels by adjusting their position to face the sun directly.

Applications:

Single post solar tracking systems are suitable for various solar energy applications, including residential, commercial, and utility-scale installations. They are particularly beneficial in areas with high solar resource availability and where maximizing energy generation is a priority.

Features:

1. Precision Tracking: Single post solar tracking systems utilize advanced tracking algorithms and sensors to accurately

track the sun's movement, ensuring optimal solar panel positioning for maximum energy generation.

2. Real-Time Adjustment: These solar tracking systems can make real-time adjustments to the solar panel angles, ensuring that the panels are always perpendicular to the sun's rays, maximizing energy capture.

3. Durability: Single post solar trackers are designed to withstand harsh environmental conditions, including wind, snow, and extreme temperatures, ensuring long-term performance and stability.

4. Maintenance: These systems typically require minimal maintenance, with features such as self-lubricating bearings and weather-resistant materials, reducing the overall maintenance efforts and costs.

Advantages of Single Post Solar Tracking System:

1. Increased Energy Generation: Single post solar tracking systems significantly increase energy generation compared to fixed-tilt systems by optimizing solar panel positioning throughout the day, capturing more sunlight.

2. Higher Efficiency: By continuously adjusting the solar panel angles, these solar tracker systems maximize the conversion of solar energy into electricity, improving overall system efficiency.

3. Cost Savings: Despite the initial higher investment, single post solar trackers can provide long-term cost savings by generating more electricity and reducing the payback period of the solar energy system.

4. Environmental Impact: By maximizing energy generation, these solar tracking systems contribute to reducing greenhouse gas emissions and promoting a cleaner and more sustainable energy source.

5. Durability and Reliability: Single post tracking systems are built to withstand various weather conditions, including wind and snow. They are engineered with robust materials to ensure long-term performance and reliability.
