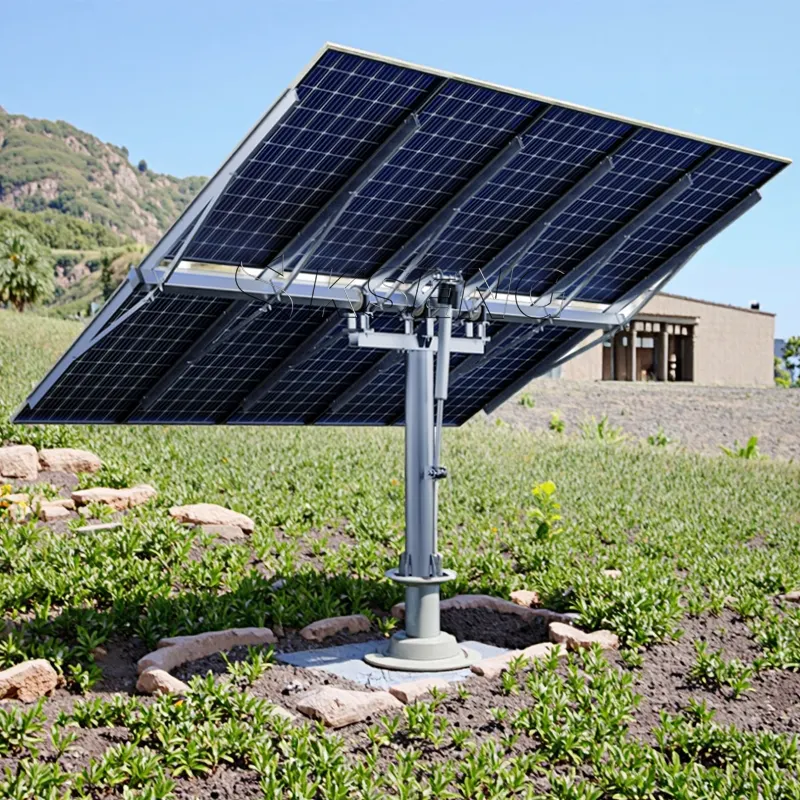

Single Axis Slewing Drive KST-SPH Solar Panel Sun Tracking System

solar tracking system

1. Increased Energy Production
2. Improved Efficiency
3. Flexible Installation
4. Space Optimization
5. Cost-Effectiveness
6. Durability and Reliability
7. Easy Maintenance
8. Environmental Benefits


  • 45

  • KSeng

  • KSeng-45

Product Description

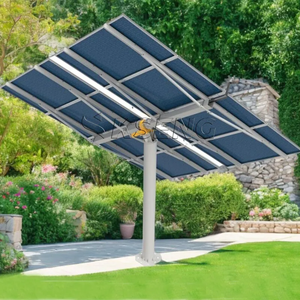

solar tracker (6)

solar tracker (3)


                                                                            Tracking Structure Parameters
Tracking Technology Single Post  Solar Tracking System Maximum capacity per set 6kWp ( Estimated with 600W PV-Modules )
PV-Modules quantity per set 10PCS Tracking range ±45°( E-W )
Tracking accuracy ±0.5° Tilt angle 25°- 40°( S-N )( according to project )
Protection of wind speed ≥18m/s ( Windy area ) Foundation form Concrete foundation

                                                               Tracking Controller Parameters

Control system MCU Load design standard GB, ASCE,BS EN,AS
Overheat prevention Have Night stow mode Have
System fault self-diagnosis Have Overload prevention Have
Motor Type 24V DC Motor Drive System Slew drive
Power Acquisition Mode AC-powered or self-powered ( with 8 PV modules ) Solar tracking method Astronomical algorithm + closed loop(AI Control)


1. Increased Energy Production: Single post solar tracker maximize energy production by continuously adjusting

the position of the solar panels to face the sun. This tracking capability ensures that the panels receive maximum

sunlight exposure, resulting in higher energy generation compared to fixed solar panel installations.

2. Improved Efficiency: By following the sun's path, solar trackers optimize the angle of the solar panels to capture

the most sunlight. This increased efficiency translates into higher electricity output, making these trackers ideal for

locations with variable sunlight conditions or seasonal changes.

3. Flexible Installation: The solar tracking system can be installed on various terrains, including flat or sloped

surfaces. Their design allows for easy adaptability to different environments, making them suitable for both

residential and commercial applications.

4. Space Optimization:  The solar panels tracking system requires less space compared to other tracking systems,

such as dual-axis trackers. This space-saving feature makes them suitable for installations with limited available

land area or rooftops.

5. Cost-Effectiveness: The pv solar tracking system is often more cost-effective compared to dual-axis trackers or

other complex tracking systems. Their simpler design and reduced moving parts result in lower installation and

maintenance costs.

6. Durability and Reliability: These trackers are designed to withstand various weather conditions, including high

winds and heavy snow loads. They are built with robust materials and mechanisms, ensuring long-term durability

and reliable performance.

7. Easy Maintenance: The sun tracking solar system has  fewer moving parts compared to other tracking systems,

simplifying maintenance requirements. This ease of maintenance reduces downtime and ensures consistent energy


8. Environmental Benefits: By maximizing energy generation, solar pv tracking system contributes to reducing

reliance on fossil fuels and decreasing greenhouse gas emissions. They promote the use of clean and renewable

energy sources, helping to mitigate climate change.

Company Profile

Xiamen Kseng Metal Tech Co., Ltd is a national high-tech enterprise with independent intellectual property rights.  Annual production capacity can reach 6.55GW.  Our company has obtained nearly 100 utility model patents. Our product structure design absolutely conforms to AS/NZS 1170 standard, JISC8955-2017 standard, European TUV test and SGS certification.  We aim to provide safe, reliable and high quality technical solutions for customers and always adhere to the phrase, “Kseng Products, Be Trustworthy”.

kseng solar production lines


kseng solar Certification



Payment method: support L/C, T/T, paypal

packing method: Standard export package. Using Carton, fumigated wood pallet and steel pallet.
